Manufacturer #
Manufacture Name
Retail Price
$ 755.67

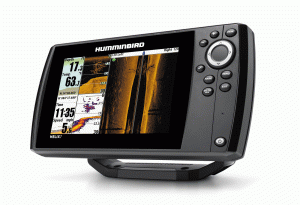

Sometimes, you need every possible weapon at your disposal. Days like these call for the HELIX 7 SI GPS and its full arsenal of amazing technologies, including Side Imaging, Down Imaging and SwitchFire Sonar. The seven-inch widescreen is the perfect canvas for your choice of split-screen views. The single card slot accommodates Humminbird, LakeMaster, AutoChart and AutoChart Pro, as well as Navionics Gold/HotMaps. Leading-edge technology has never been closer in reach. Display Size - Diagonal:7" Display Pixel Matrix:800H x 480V Display Type: Color TFT Display Colors Grayscale:256 Colors Sonar Standard:Side Imaging/Down Imaging/DualBeam PLUS Standard Sonar Coverage: 20 degree, 60 degree & (2) 85 degree @ -10db (Total of 180 degree) Standard Sonar Frequency: 200/83/455 kHz Target Separation: 2.5" Power Output RMS:500 Watts Power Output Peak to Peak:4000 Watts Depth Capability:100 ft (SI), 1500 ft Temperature: Included Speed: GPS Speed Included Backlight: LED Unit Size - Gimbal Mount:10.54"W x 5.44"H x 1.13"D Mount A Type: Gimbal Mount Unit Size - Indash Mount:10.54"W x 5.80"H x 3.68"D Mount B Unit Size 2: Optional In-Dash Mounting Options: Gimbal or Optional In-Dash Transducer Standard: XNT 9 SI 180 T Transducer Mounting: Transom Power Input: 10-20 VDC Power Draw: 800 mA GPS Receiver: Included GPS Tracking: Included GPS Chartplotting: Included Waypoints, Routes, Tracks/Points:2,500, 45, 50/20,000 Humminbird Mapping: Optional Navionics Gold/HotMaps: Optional Navionics Platinum+: Not Supported Platinum Capable: Not Supported C-Map 4D: Not Supported 360 Imaging: Not Supported i-Pilot Link: Not Supported HD Radar: Not Supported NMEA 2000: Not Supported 5 Port Expansion Module: Not Supported WeatherSense: Not Supported Precision GPS:Included Heading Sensor GPS:Not Supported PC Connect:Optional External GPS Receiver:Not Supported AS Interlink: Not Supported AIS Compatibility: Not Supported SwitchFire Sonar: Included Screen Snap Shot: Included Sonar Recording: Included Upgradable Internal Software: Included Split Screen Zoom: Included Split Screen Bottom Lock: Included 3D Chart View: Included Large Digits View: Included Wide/Narrow Cone Split Screen: Included Custom View Selections: Included Custom Digital Readout: Included View Preset Keys: Not Supported Temperature Graph: Not Supported Temperature Alarm: Included Freeze Frame: Included Instant Image Update: Included Mark Structure on Sonar: Included Selective Fish ID+: Included Real Time Sonar: Included Triplog: Included X-Press Menu System: Included Card Reader Available: Yes # Card Slots: 1 Domestic CHO: n/a Intl Portable: n/a Hardware: MHX XNT Transducer 2: XNT 9 SI 180 T Bronze Thru Hull: N/A Plastic Thru Hull: XPTH 9 HDSI 180 T Puck: N/A Trolling Motor: XTM 9 SI 180 T Angled Puck: N/A Portable 2: N/A Bronze 3-n-1: N/A
